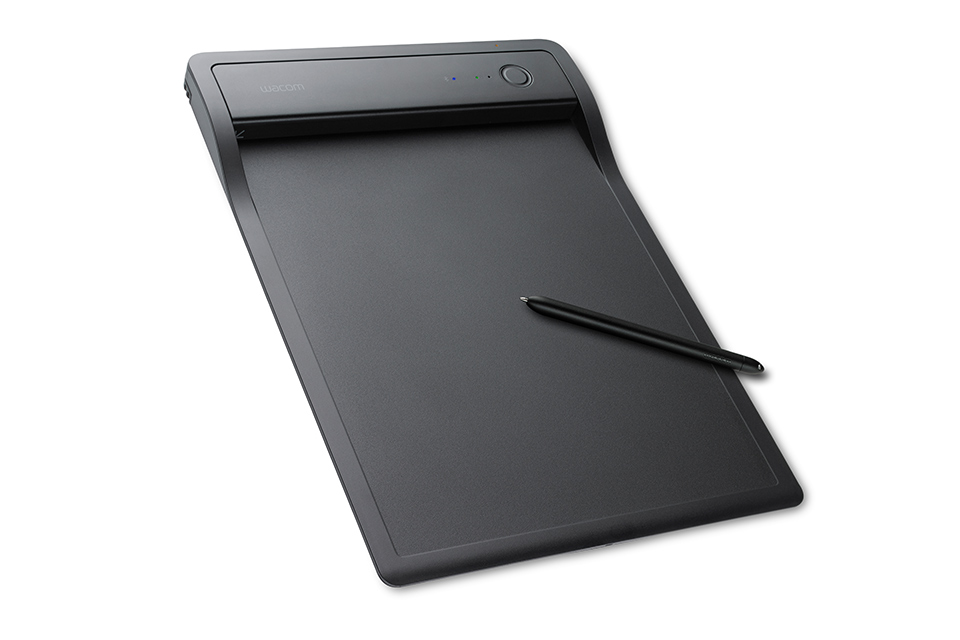

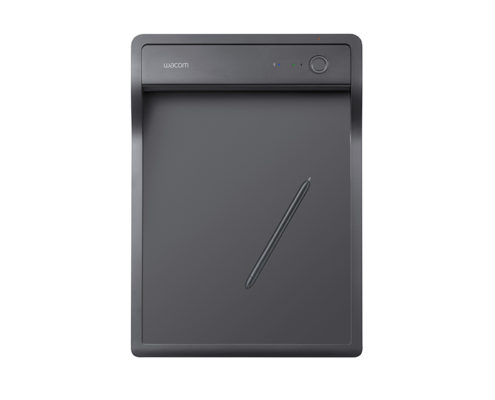

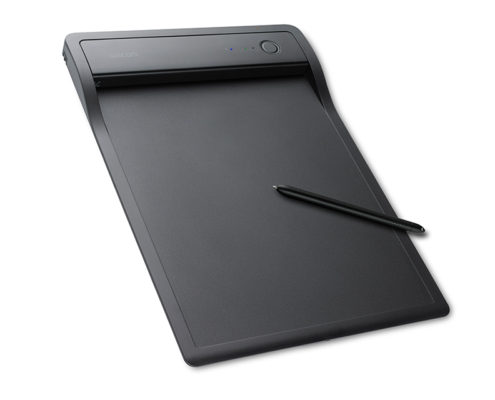

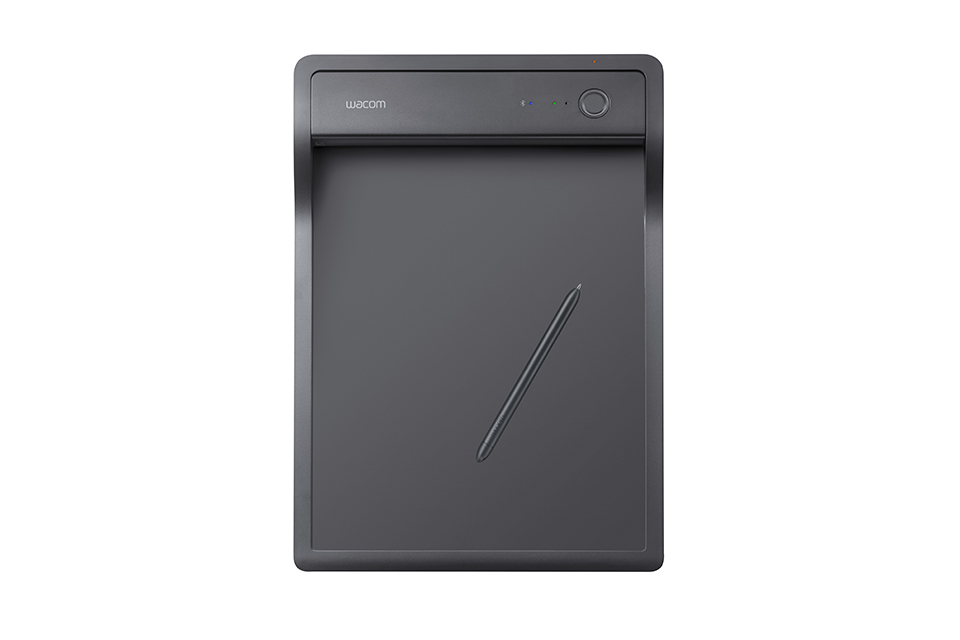

Wacom Clipboard PHU-111

Wacom Clipboard PHU-111

With the Wacom Clipboard, your customers fill out paper forms like they always have. What is different? Those documents are converted to digital format in real time and can be uploaded immediately for easy document management. Better still, no scanning is necessary and biometric handwritten signatures can be captured and attached to the digital document.

PHU-111 PHU-111
PHU-111 Wacom Clipboard Applications Wacom Clipboard PHU-111 Wacom Clipboard Wacom PHU-111 Clipboard Wacom PHU-111 Wacom Wacom PHU-111

Download Broucher

Download Brochure

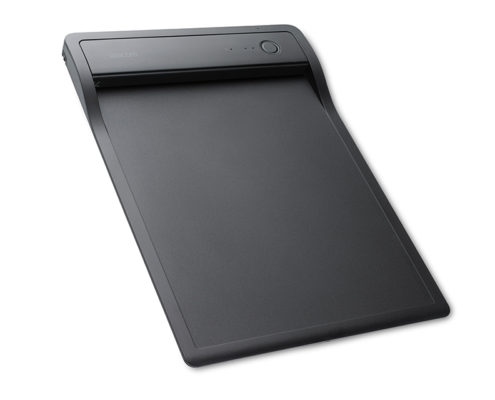

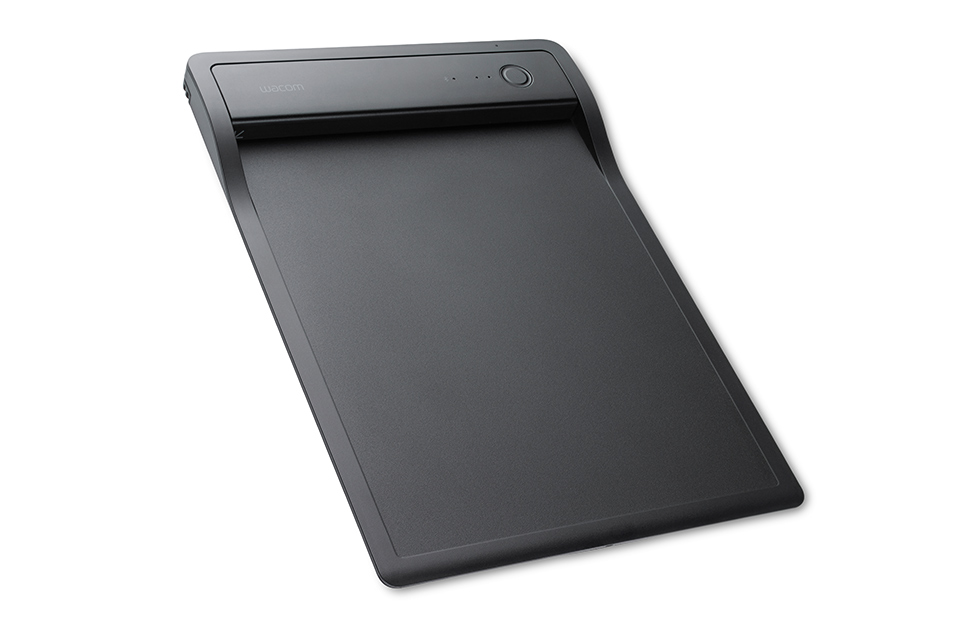

Wacom Clipboard Applications
To get started with the Wacom Clipboard, you can use Wacom’s applications that will allow you to create corresponding paper and digital forms and digitally capture all information written on the electronic clipboard.

CLB Create
Layout paper forms and matching digital version, define specific field types (including signature fields where biometric signatures will be captured).
Creates and applies unique barcodes to the forms so the matching digital version can be called up as soon as the paper document is inserted into the clipboard.
Windows 7 SP1 or higher/8/8.1/10

CLB Paper
Retrieves digital document based on barcode on the paper version identified by the clipboard.
Records user input.
Handwriting recognition applied to compatible text fields.
Android / iOS

General Specifications
  • Dimensions
    283 x 210 x 11 mm (excluding rubber stand foot)
    283 x 210 x 16 mm (including rubber stand foot)
  • Weight
    700 grams
  • Power supply
    USB bus power, no AC power required
  • Power consumption
    5 W maximum, 1 W or less in sleep mode
  • Communication interface
    USB 2.0 (full speed)
  • Supported operating systems
    Windows XP / 7 / 8 / 8.1
    Mac OS 10.7 and later
LCD Screen
  • Main body colour
    Black
  • Display
    IPS TFT display
  • Cover plate surface
    Tempered anti-glare etched glass
  • Screen diagonal
    10.6”
  • Resolution
    1920 x 1080
  • Viewing angles (horizontal/vertical)
    170°/ 170°
  • Colours
    16.7 million colours
  • Response time
    16 ms (typical)

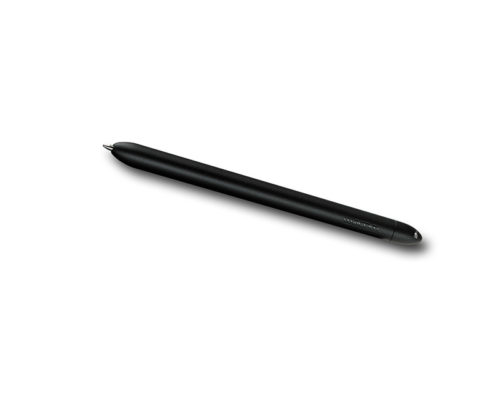

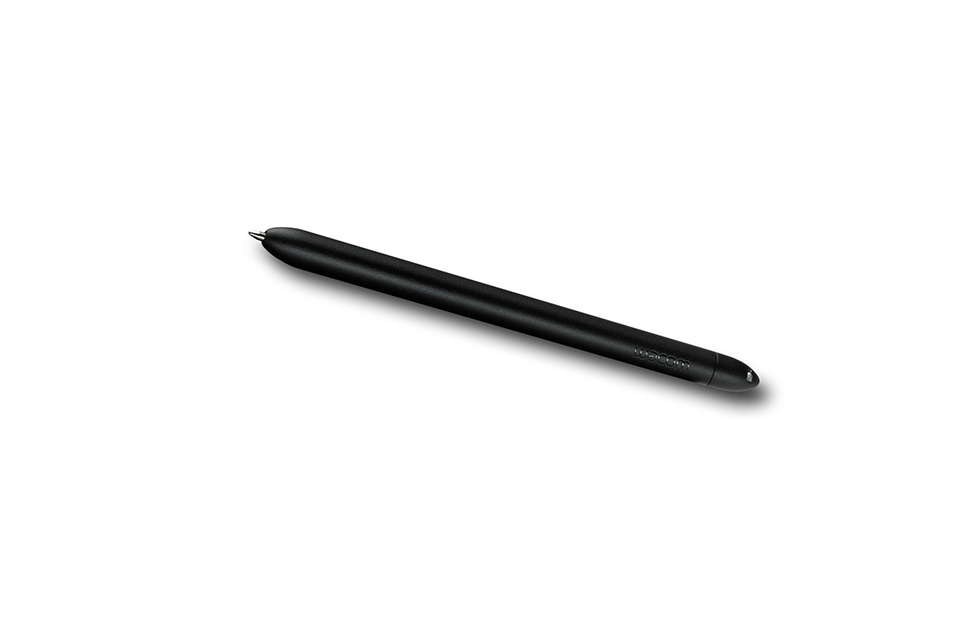

Pad & Pen
  • Technology
    Electromagenetic resonance (EMR)
  • Active area
    235 x 132 mm
  • Resolution
    2.540 lpi (non-interpolated)
  • Coordinate accuracy
    ±0.02 inch / 0.5 mm (center)
  • Report rate
    200 points per second (non-interpolated), 800 4D coordinates
  • Pressure levels
    1024
Miscellaneous
  • Reading height
    5 mm or more (centre)

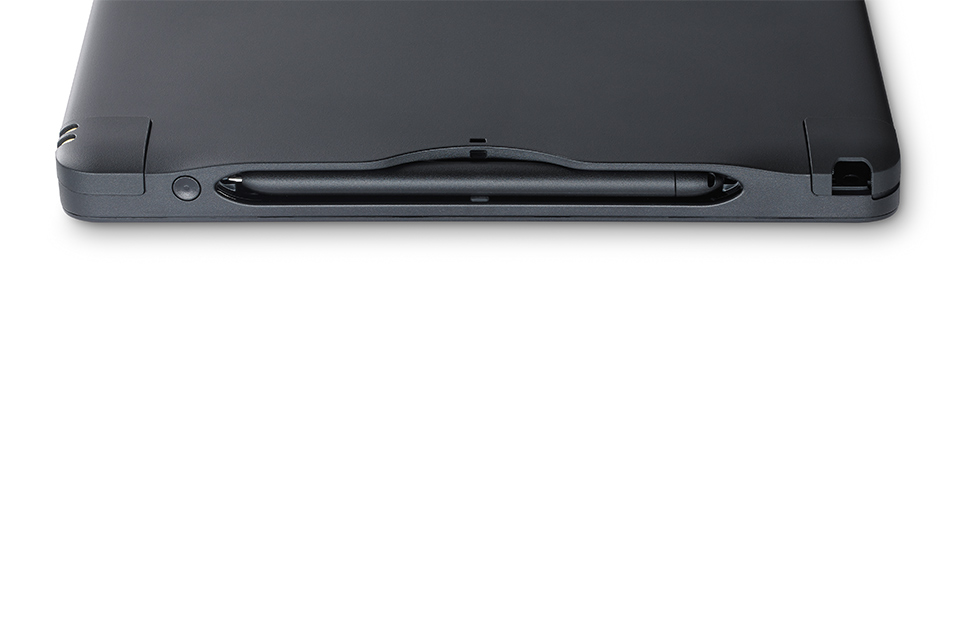

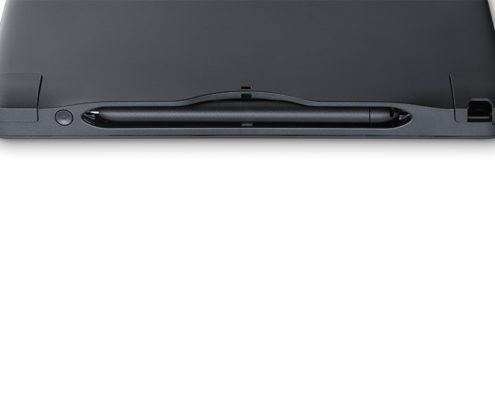

  • Pen storage
    Integrated pen compartment, pen holder
  • Software
    Compatible with signature / e-signing software and Wacom´s sign I pro PDF,C++,.
    Net and Java SDK/API available for developers
  • Package content
    Signature pad, battery-free & cordless pen, pen tether, USB cable 1.5m,
  • Operating temperature,relative humidity
    +5° to +35°C / +41° F to +95° F, 20% to 80% (non-condensing)
  • Storage temperature,relative humidity
    -20° to +60° C / -4° to +140° F,  30% to 90% (non-condensing)
  • Warranty
    Depending on region and channel of purchae – please inquire for details
