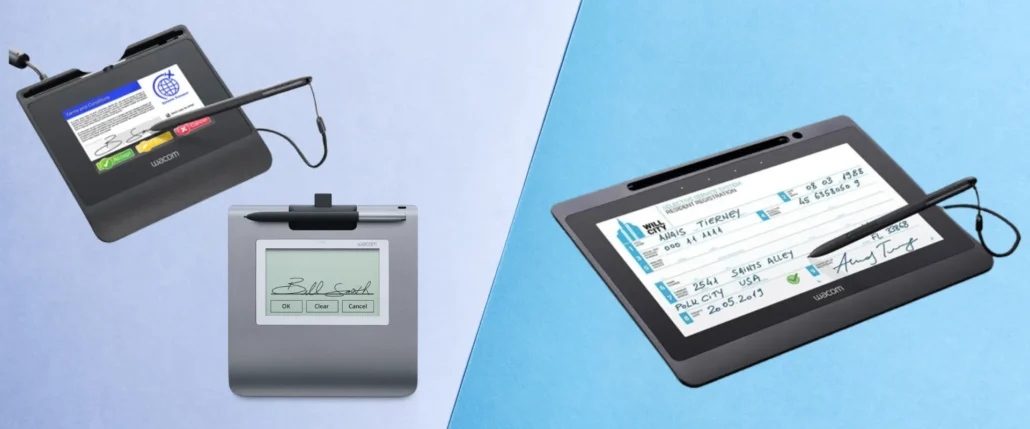

Wacom Electronic Signature Pads in UAE: STU-430, STU-540, and CH2 Bundles Explained

This article covers the full range of Wacom electronic signature pads available in the UAE — the STU-430, STU-540, and their CH2 bundle variants — so you can determine which model fits your organisation’s signing workflow, integration environment, and counter setup.

Key Takeaways

• Hardware & EMR Tech: Wacom STU-430 and STU-540 signature pads use a cordless, battery-free EMR pen with 1024 pressure levels for precise signature capture.
• Enterprise Security: Both models feature AES-256 and RSA-2048 encryption, unique device hardware IDs, hardened glass, and Kensington lock slots.
• STU-540 Upgrades: Adds a 5.0-inch color TFT LCD, Citrix/VDI compatibility, custom UI support, and optional RS-232 serial connectivity.
• CH2 Bundles: The STU-430-CH2 and STU-540-CH2 SKUs bundle hardware with a Wacom sign pro PDF software license for easy procurement.
• UAE Sourcing: Available via authorized supplier wacomme.ae with warranty support across Dubai, Abu Dhabi, and the GCC.

What Are Wacom Electronic Signature Pads?

Wacom electronic signature pads are dedicated hardware devices designed to capture handwritten electronic signatures at the point of service, replacing paper forms, printing, and manual filing. Each pad uses a cordless, battery-free electromagnetic resonance (EMR) pen with 1024 pressure levels to deliver a writing experience close to pen on paper. The core models available in the UAE and wider Middle East are the Wacom STU-430, the Wacom STU-540, and their respective CH2 software bundles.

Wacom is a globally recognised brand for pen-input hardware, widely adopted in banking, healthcare, and government sectors for enterprise-grade secure signature capture. Both the STU-430 and STU-540 share a coordinate resolution of 2540 lpi, a report rate of 200 points per second, and positional accuracy of ±0.5 mm, making them suited for regulated, high-volume signing environments across the UAE and GCC.

Secure Encrypted Signature Capture: The Core Strength of Both Models

Every Wacom STU-430 and STU-540 captures handwritten signatures with AES-256 and RSA-2048 encryption, binding each signature to a unique hardware ID embedded in the physical device. This means signed documents carry a device-level audit trail — a requirement in UAE financial institutions and government service environments that demand tamper-resistant, auditable signing records.

Each pad also includes a Kensington-style security lock slot for physical device security at counters. The hardened glass signing surface on the STU-430 and the hardened, anti-glare cover glass on the STU-540 protect against daily wear in high-footfall environments such as bank teller desks and hospital reception counters.

The Wacom STU-430 and STU-540 each deliver these security capabilities out of the box:

• AES-256 encryption for secure signature data transmission
• RSA-2048 encryption for authentication and communication security
• Unique hardware ID per device for document-to-device audit linkage
• Hardened glass signing surface for scratch and impact resistance
• Kensington lock slot for physical counter security

Color Display and Citrix Readiness: What the STU-540 Adds

The Wacom STU-540 extends the core platform with a 5.0-inch color TFT LCD at 800 x 480 pixels (WVGA) and an optional RS-232 serial interface alongside USB 2.0. This makes the STU-540 the preferred choice for organisations running Citrix or other virtual desktop infrastructure (VDI) environments, where USB redirection or virtual COM port configuration is required.

The color display supports customisable on-screen buttons, Arabic and English instruction screens, branding, and promotional slideshow content — all configured by the application layer. UAE banks and retail chains can use this to display signing prompts in the customer’s preferred language or show promotional content between transactions, improving both compliance communication and customer experience at the counter.

Build and Physical Design

The Wacom STU-430 measures approximately 161 x 96 x 10 mm and weighs around 200 g, while the Wacom STU-540 measures approximately 150 x 95 x 10 mm and weighs around 280 g. Both are bus-powered via USB, eliminating the need for a separate power supply in standard counter deployments — though the STU-540 supports an external power supply when using the RS-232 interface.

The thin, flat form factor of both pads is intentional for crowded service counter environments. The STU-430 uses a 4.5-inch transflective monochrome F-STN LCD at 320 x 200 pixels, which remains readable under varied lighting conditions without relying on backlight intensity. Both devices use plastic housing designed for desktop and counter use in typical indoor office and service environments.

Connectivity and Software Integration

The Wacom STU-430 connects via USB 2.0 Full-speed and is bus-powered, making it plug-and-play with Windows PCs in standard desktop deployments. The Wacom STU-540 connects via USB 2.0 High-speed and adds an optional RS-232 serial interface, supporting virtual COM and virtual USB modes for Citrix and VDI environments.

Both models integrate with applications built using the Wacom Signature SDK and Wacom STU SDK, which provide APIs for C++, .NET, and Java development environments. The CH2 bundles include Wacom sign pro PDF for Windows, which covers PDF viewing, signature placement, annotation, form field filling, and PDF creation via a Windows virtual printer driver — without requiring custom development for standard over-the-counter workflows.

What Does CH2 Mean? Understanding the STU-430-CH2 and STU-540-CH2

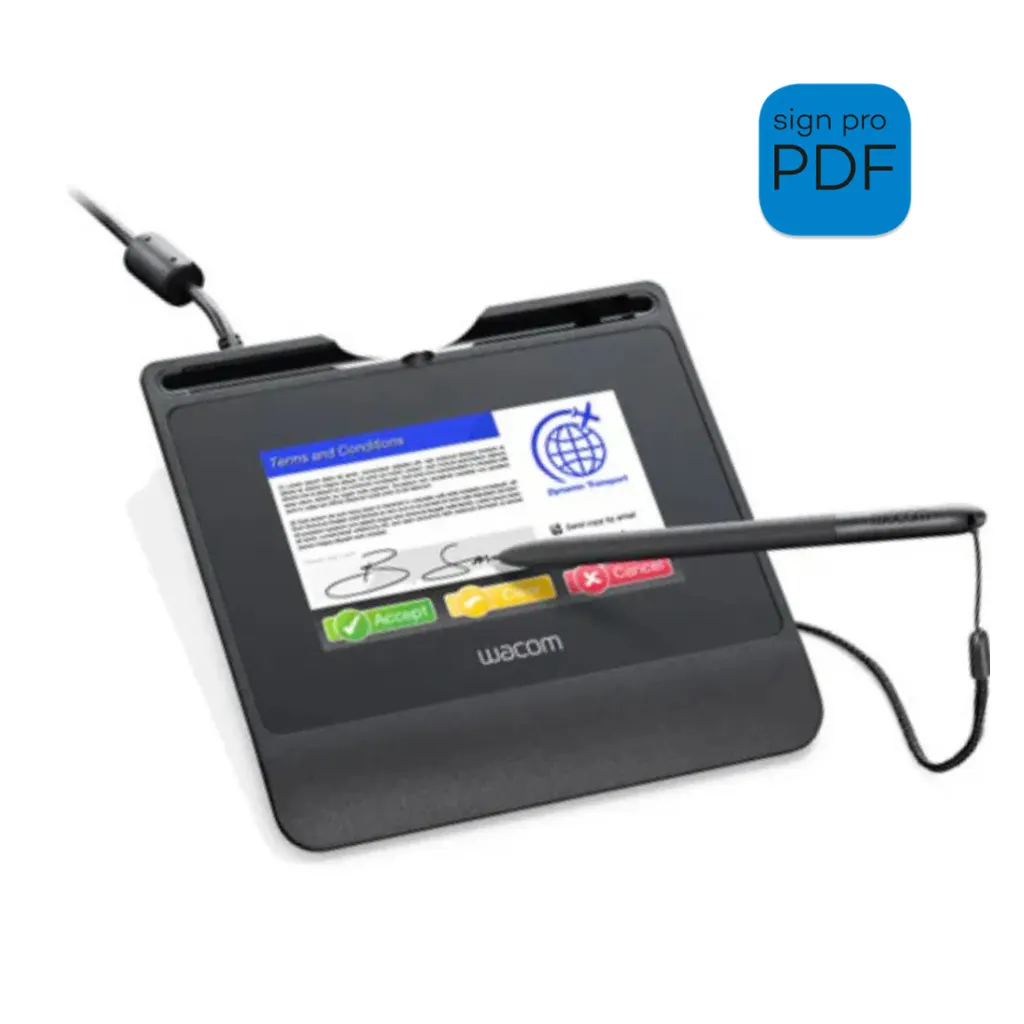

CH2 is a Wacom bundle designation, not a different hardware revision. The STU-430-CH2 combines the STU-430 hardware with a sign pro PDF software license in a single packaged SKU. The STU-540-CH2 does the same with the STU-540 hardware. This means procurement teams receive hardware and software in one purchase order, reducing the coordination effort between IT and purchasing departments.

For UAE banks, clinics, and government counters moving from paper to digital signing, the CH2 bundle is a practical starting point. Sign pro PDF is described by professional users as straightforward for counter staff to operate, and it covers the most common over-the-counter PDF signing workflows without custom integration. Organisations that require deeper integration into core banking, hospital information systems, or government platforms will need to engage the Wacom Signature SDK for custom application development.

Who Should Buy Wacom Electronic Signature Pads in the UAE?

Wacom electronic signature pads are built for face-to-face, regulated signing environments where document integrity, customer experience, and counter efficiency all matter simultaneously. The following buyer profiles reflect where these devices deliver clear operational value in the UAE:

• Banks and Financial Institutions: In Dubai and Abu Dhabi, processing account openings, loan agreements, and KYC forms benefit most from the STU-540-CH2 in high-traffic branches, where the color UI, Citrix compatibility, and audit trail features align with regulatory and operational demands.
• Hospitals and Healthcare Clinics: Handling patient consent and insurance forms find the STU-430-CH2 a cost-effective fit for standard Windows-based workflows at reception counters.
• Government Service Centers: Issuing permits and accepting declarations benefit from either model’s encryption and hardware ID features, which support their document integrity obligations.
• Retail Chains & Service Desks: Requiring warranty form or delivery confirmation signatures can deploy the STU-430 as a cost-effective baseline solution across multiple counters.

Wacom STU-430 vs Wacom STU-300: Which One Is Right for Your Use Case?

The Wacom STU-430 and the Wacom STU-300 serve different tiers of signing deployment. The STU-430 is a full-featured monochrome pad with AES-256/RSA-2048 encryption, hardened glass, and a 4.5-inch display, while the STU-300 is positioned as a more compact, entry-level device with a smaller display and a simpler feature set. Choosing between them depends on counter volume, security requirements, and integration complexity.

The Wacom STU-430 is the right choice for any UAE organisation that needs encrypted, auditable signature capture at a service counter — particularly where the signing process is tied to a regulated document such as a bank form, consent record, or government application. The hardware ID and AES-256/RSA-2048 encryption features are not negotiable in these environments.

Professional users in enterprise deployment forums consistently highlight the STU-430’s durability at high-traffic counters and its reliable pen accuracy as key operational advantages. The STU-300 suits very small offices or pilot deployments where signature volume is low, integration complexity is minimal, and the advanced security features of the STU-430 are not a procurement requirement.

Choose the Wacom STU-430 if…

• Your counters handle regulated documents requiring an encrypted, auditable signing record.
• You need a proven, durable pad for daily high-volume use at bank, clinic, or government desks.
• You want the CH2 bundle to simplify procurement with hardware and sign pro PDF in one SKU.
• Your deployment is Windows-based and does not require Citrix or serial connectivity.

Choose the Wacom STU-300 if…

• Your use case is a small office or pilot with low daily signing volume.
• You need basic signature capture with minimal integration complexity.
• Counter space is extremely limited and a smaller footprint takes priority over feature depth.

What Is the Wacom Electronic Signature Pad Price in UAE and Where Can You Buy It?

Pricing for the Wacom STU-430, STU-430-CH2, STU-540, and STU-540-CH2 varies based on quantity, bundle configuration, and integration requirements. Pricing is available on request through wacomme.ae, along with current availability, bundle options, and full UAE warranty support.

The Wacom STU-430, STU-540, STU-430-CH2, and STU-540-CH2 are confirmed available in the UAE market. wacomme.ae is the authorized supplier for the Middle East region and can provide proposals for multi-branch rollouts, software integration services, and regional deployment support across the UAE, KSA, Qatar, Kuwait, and beyond.

Frequently Asked Questions

What is the Wacom electronic signature pad price in UAE?

Pricing for Wacom electronic signature pads — including the STU-430, STU-430-CH2, STU-540, and STU-540-CH2 — is not published as a fixed list price, as it depends on quantity, bundle configuration, and deployment scope. Contact wacomme.ae directly for a current price quote and availability confirmation.

Where can I buy Wacom STU-430 or STU-540 in Dubai?

The Wacom STU-430 and Wacom STU-540 are available through wacomme.ae, the authorised Wacom supplier for the Middle East, which serves buyers across Dubai, Abu Dhabi, and the wider UAE with regional support and deployment services.

Does the Wacom STU-430 or STU-540 come with UAE warranty?

Warranty terms for the Wacom STU-430 and Wacom STU-540 purchased through wacomme.ae are confirmed as part of the authorised regional supply arrangement. Contact wacomme.ae for specific warranty duration and support coverage details applicable to your deployment.

Is the Wacom STU-540 better than the STU-430?

The Wacom STU-540 is a more advanced model than the STU-430, adding a 5-inch color TFT LCD, higher display resolution (800 x 480 vs 320 x 200), RS-232 serial connectivity, and Citrix/VDI compatibility. The STU-430 remains the stronger value choice for standard Windows counter deployments where color UI and serial connectivity are not required.

What is included in the Wacom STU-430-CH2 and STU-540-CH2 box?

The STU-430-CH2 includes the Wacom STU-430 signature pad hardware and a Wacom sign pro PDF software licence in one packaged bundle. The STU-540-CH2 includes the STU-540 hardware and the same sign pro PDF licence. Exact in-box accessory contents beyond hardware and software licence are not confirmed.
